Automatisches Parkhaus mit Lego mindstorms NXT:

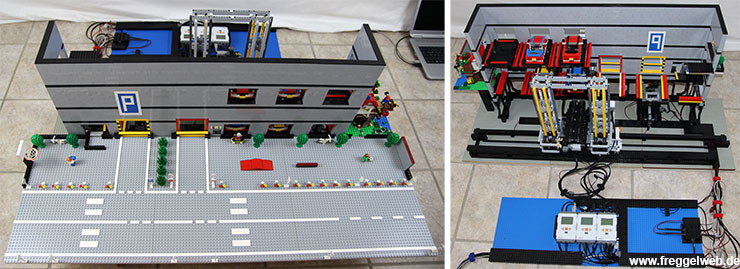

Lego Parkhaus

  • Auto Transport:
    • vertikal: Lego mindstorms NXT Servomotor
    • horizontal: Lego Technic power functions L- Motor
  • Transportband:
    • Lego Technic power functions M- Motor
    • Firgelli L12 Lego Compatible Linear Actuator 100mm

  • Position Stellplätze, Einfahrt, Ausfahrt:
    • horizontal: Reedkontakt Sensoren
    • vertikal: Lego mindstorms NXT Farbsensor

  • Fahrzeug drehen:
    • Reedkontakt Sensoren; Lego Technic PF M- Motor, Firgelli L12 Lego Compatible Linear Actuator 50mm

  • Fahrzeug in Stellplatz einparken:
    • Parkschein: Lego mindstorms NXT Farbsensor
    • Schranke unten: Taster

  • Fahrzeug aus Stellplatz ausparken:
    • Parkschein: Lego mindstorms NXT Farbsensor
    • Schranke unten: Taster

  • Signallampen:
    • Lego 9V Lichtstein

  • Programmierung in LabVIEW


Video
