Bauanleitung |
![](fotos/elektronik/kennleuchte/2.jpg) |

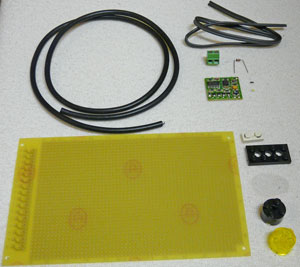

- 1x Electric Plate, 2x1 with contacts
- 1x Brick, 2x2 Round - schwarz
- 1x Brick, 2x2 Round - transparent yellow
- 1x Technic Plate 2x4 - schwarz
- 1x SMD 4- Kanal Rundumlicht
- 1x Platine
- 4x 150Ω SMD- Widerstand
- 4x SMD- LED - weiß; Bauform: rechteckig
- 1x Diode 1N4148
- 4x 2- polige Leiterplattenklemmen
- 2- Adriges Kabel
- 6- Adriges Kabel
- 1- Adriges Kabel - rot
- 1- Adriges Kabel - blau
|
![](fotos/elektronik/kennleuchte/3.jpg)
![](fotos/elektronik/kennleuchte/3-1.jpg) |
- Bohrungen außen:
Ø=5mm
- Bohrungen innen:
Ø=3,5mm
|
![](fotos/elektronik/kennleuchte/4.jpg)

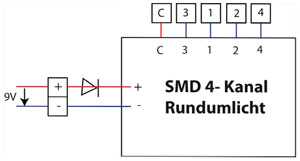

![](fotos/elektronik/kennleuchte/4-2.jpg) |
|
![](fotos/elektronik/kennleuchte/5.jpg) |

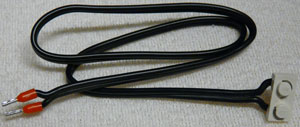

- Spannungsversorugungskabel
|
![](fotos/elektronik/kennleuchte/7.jpg) |
- Brick, 2x2 Round - schwarz:
Noppen innen wegfräsen
|
![](fotos/elektronik/kennleuchte/8.jpg) |
- Brick, 2x2 Round - schwarz:
SMD- LED's mit Sekundenkleber befestigen
|
![](fotos/elektronik/kennleuchte/9.jpg) ![](fotos/elektronik/kennleuchte/9-1.jpg)
![](fotos/elektronik/kennleuchte/9-0.jpg) |
|
![](fotos/elektronik/kennleuchte/10.jpg) |
![](fotos/elektronik/kennleuchte/10-2.jpg) |
|
![](fotos/elektronik/kennleuchte/10-1.jpg) |
|
![](fotos/elektronik/kennleuchte/11.jpg) |

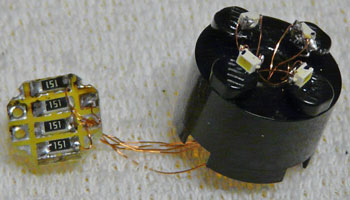

- rausgeführte Kathoden an SMD- Widerstände löten
- rausgeführte Anode an ein Lötauge löten
|
![](fotos/elektronik/kennleuchte/12.jpg) |
![](fotos/elektronik/kennleuchte/12-0.jpg) |
|
![](fotos/elektronik/kennleuchte/13.jpg) |
![](fotos/elektronik/kennleuchte/12-1.jpg) |

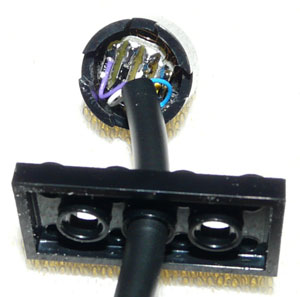

- Technic Plate und Brick round zusammenstecken
|
![](fotos/elektronik/kennleuchte/0.jpg) |
- Brick, 2x2 Round - transparent yellow:
Noppen innen wegfräsen und auf Brick, 2x2 Round - black stecken
|

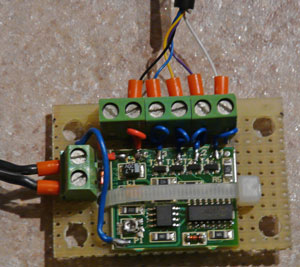

![](fotos/elektronik/kennleuchte/14.jpg) |
|
![](fotos/elektronik/kennleuchte/1.jpg) |
|
